Project Overview

The Autonomous Blimp Robot project at the Smart Microsystems Lab is an end-to-end effort on an indoor lighter-than-air platform — low-noise, safe around people, and well-suited to long-duration sensing and control research. Unlike multirotors, which give minutes of flight, a blimp gives hours, which opens up applications like agricultural monitoring, environmental surveillance, and wildlife observation that benefit from extended on-station time.

The work spans hardware bring-up, full 6-DOF nonlinear dynamics derivation, a physics-based simulator, controller experiments (PI → PID → feedforward → disturbance-observer-based), ROS 2 firmware integration, and a next-generation hardware platform now in design.

Highlights:

🛠️ Hardware — Modular blimp platform with vectored thrust and onboard sensing.
🤖 ROS 2 Stack — micro-ROS firmware on the gondola and a ROS 2 host stack for teleop, kinematic estimation, dead reckoning, and flight control.
🧠 Dynamics & Simulation — 6-DOF nonlinear model derived via Euler–Lagrange formalism, implemented in a Simulink-based simulator for in-silico controller validation.
🎯 Control — Successive controllers from single-axis PI all the way through multi-axis PID with trajectory tracking and an extended high-gain observer (EHGO) for disturbance rejection.

Current Platform

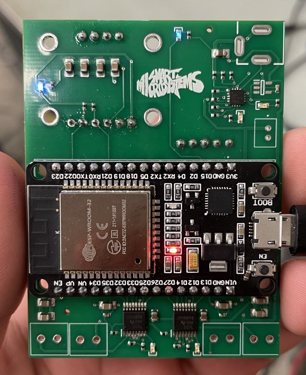

Left: the current v1 blimp robot with helium envelope and gondola. Right: v1 gondola control board running the micro-ROS firmware that bridges the platform onto the ROS 2 host stack.

Buoyancy Tuning (proposed — not yet implemented)

One concept I’ve been sketching out — but haven’t built — is a tunable air bladder inside the helium envelope to set static lift. The envelope volume would stay fixed; the bladder pulls in ambient air (≈ 70 % N₂, much heavier than helium) to displace helium and increase the system’s effective weight without changing the displaced volume. Small bladder → lighter blimp; large bladder → heavier blimp. The motivation is to trim the platform to near-neutral buoyancy before any controller is engaged, since the actuators are weak relative to the envelope’s volumetric drag and any lift mismatch eats into already-thin control authority. Today, trim is done manually with ballast.

Dynamics & Modeling

The full 6-DOF dynamics were derived in Euler–Lagrange form:

\[M(q)\ddot{q} + C(q,\dot{q}) + g(q) = \tau(u) + \sigma_{\text{dist}}\]

with $q = [x, y, z, \phi, \theta, \psi]^\top$ and $\tau(u)$ collecting the thruster forces and moments. A planar simplification — body-frame thrust $f$ along $x_b$ and a yaw moment $M$ — was used heavily for controller derivation and for the disturbance-observer work. The non-holonomic structure of that planar model (the platform can rotate and translate forward but not slide sideways without rotating first) drives the choice of unicycle-style trajectory tracking later in the project.

Simulation Environment

A Simulink simulator wraps the full state equations, applies thruster commands, and visualizes the blimp in a 3-D environment. All controller iterations below were validated in this simulator before any consideration of hardware deployment, with reference trajectories and injected disturbances toggleable from a dashboard.

Controller Progression

Rather than jump straight to a multi-axis controller, the design ramped up in stages, each one exposing the limitation that motivated the next.

Stage 1 — Z-only PI Controller

A first pass used a single PI loop driving altitude $z$ against a square-wave reference (1.275 m – 2.975 m, 320 s period). The altitude tracking looked clean on its own, but driving only $z$ non-trivially perturbed $x$ and yaw — the thrusters that change height also push the platform laterally because of how they’re mounted. A Z-only controller can’t be the final answer.

Stage 2 — PID on X – Z – Roll – Yaw

Next iteration: compute the position error in the world frame $\Sigma_0$, rotate the error vector into the body frame $\Sigma_b$, and use the body-frame error as input to per-axis PID controllers driving the thrusters. The same square-wave $z$ reference was used, with constant zero references on $x$, roll, and yaw to actively suppress the cross-coupling that bit Stage 1.

This was a meaningful improvement — $z$ tracks well and roll/yaw stay quiet — but uncontrolled states still drift. In particular $y$ slowly walked off because nothing was actively regulating it.

Stage 3 — Planar Trajectory Tracking (Unicycle + PID)

Treating the blimp as a unicycle in the $xy$ plane with body-frame forward thrust + yaw moment let the controller actually track planar trajectories at constant $z$. Circular references at $R = 2$ m and $R = 1.5$ m converged, but settling time was ~350 s — fine for benchmarking, slow for any real mission. Approach #3 (feedforward + two-loop structure) bounded the response cleanly but left the slow settling untouched.

Stage 4 — Disturbance Observer (EHGO)

The final stage added an Extended High-Gain Observer to estimate and cancel persistent disturbances on the planar dynamics. The observer is built around the standard chain-of-integrators form for $x$, $y$, and $\theta$:

\[\dot{\hat{x}}_2 = \frac{\tau(u) - g(q) - C(q,\dot{q})}{M(q)} + \hat{\sigma}_d + \frac{\alpha_2}{\varepsilon^2}(y - \hat{x}_1)\]

with the disturbance estimate $\hat{\sigma}_d$ fed back into the control law.

Two disturbance profiles were tested:

Disturbance #1 — small constant offsets injected on $\ddot{x}$ and $\ddot{y}$ (≈ 2 × 10⁻³ each).
Disturbance #2 — offset only on $\ddot{y}$ — asymmetric, harder for an integral-only controller to compensate symmetrically.
Larger injected disturbance — $d = [0.4,\, -0.3,\, 0.25]^\top$ on $\ddot{x}$, $\ddot{y}$, $\ddot{\theta}$ to stress the observer.

Findings:

Against the original PID with strong integral action, EHGO didn’t move the needle much — the integrator was already absorbing slow drift, so the observer had little left to do.
Against a controller with integral action removed, EHGO meaningfully reduced steady-state error, confirming the observer is doing real work and not just being masked by the integrator.
Under the larger 3-axis disturbance, the EHGO-augmented controller kept the planar trajectory bounded while the un-rejected version drifted off the reference circle.
Pathological case: when yaw tracking is fast enough but the underlying trajectory geometry is bad, the planar trajectory diverges into a flower pattern even though yaw and observer estimates each look fine in isolation — a useful reminder that per-axis health doesn’t imply trajectory health.

The takeaway is that EHGO is the right tool when integral action is unavailable or undesirable (e.g. for windup-sensitive cases), but for the current platform with a forgiving integrator the marginal benefit is small.

Honors Option Deep Dive — ECE 417 (Dr. Vaibhav Srivastava)

The EHGO trajectory-tracking work was formalized as my ECE 417 Honors Option project under Dr. Vaibhav Srivastava, with a self-contained simulation study and write-up. This section captures the cleaner derivation behind Stage 4.

📄 Full report: ECE 417 Honors Option — Blimp EHGO Trajectory Tracking (PDF)

Decoupling Argument

The platform has 4 thrusters: 2 control roll and $\hat{z}_b$, the other 2 control $\hat{x}_b$ and yaw. Roll and pitch are naturally stable because the gondola hangs well below the center of buoyancy — so $\hat{z}_b$ stays nearly aligned with $\hat{z}_0$, and the altitude pair of thrusters effectively commands inertial $z^0$ on its own. This lets the 6-DOF problem cleanly decompose into an altitude loop + a planar 3-DOF problem. Decomposing also drops gravity and buoyancy out of the planar dynamics; everything that’s left of the unmodeled aerodynamics gets lumped into a disturbance term $\delta$ for the observer to estimate.

Planar Unicycle-like Model

\[\begin{bmatrix}\ddot{x}\\\ddot{y}\\\ddot{\theta}\end{bmatrix} = \begin{bmatrix}f\cos\theta + \delta_x\\ f\sin\theta + \delta_y\\ M + \delta_\theta\end{bmatrix}\]

The robot commands a body-frame longitudinal force $f$ and a yaw moment $M$. Since $f$ can’t be split independently into world-frame $x$ and $y$, the position controller has to simultaneously solve for $f$ and the desired heading $\theta_d$.

Assumed form of the blimp robotic platform

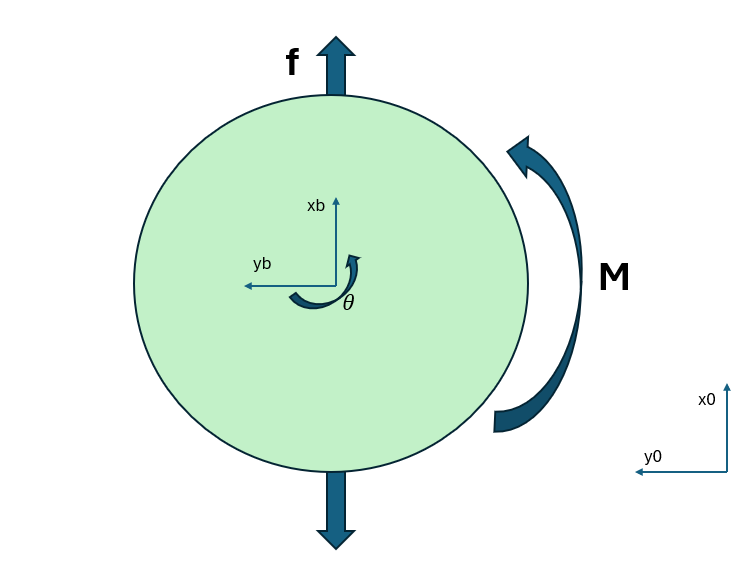

Left: assumed form of the blimp — gondola hangs below the envelope so roll/pitch are passively stable. Right: planar unicycle-like model with body-frame longitudinal force $$f$$ and yaw moment $$M$$.

Position Controller

With disturbance estimates $\hat{\delta}_x$, $\hat{\delta}_y$ from the observer, the position controller is:

\[\begin{bmatrix}f\cos\theta\\ f\sin\theta\end{bmatrix} = \begin{bmatrix}\ddot{x}_d + K_p(x_d - \hat{x}) + K_d(\dot{x}_d - \dot{\hat{x}}) - \hat{\delta}_x\\ \ddot{y}_d + K_p(y_d - \hat{y}) + K_d(\dot{y}_d - \dot{\hat{y}}) - \hat{\delta}_y\end{bmatrix}\]

The required force magnitude and heading reference fall out as:

\[f = \sqrt{(f\cos\theta)^2 + (f\sin\theta)^2}, \qquad \theta_d = \mathrm{atan2}(f\sin\theta,\; f\cos\theta)\]

Yaw Controller

The yaw loop uses the $\sin$-of-error form to avoid wraparound at $\pm\pi$:

\[M = K_p \sin(\theta_d - \hat{\theta}) - K_d\,\dot{\hat{\theta}} - \hat{\delta}_\theta\]

Observer

Three independent EHGO chains, one per output ($x$, $y$, $\theta$). For the $x$-chain:

\[\begin{bmatrix}\dot{\hat{X}}_1\\\dot{\hat{X}}_2\\\dot{\hat{\delta}}_x\end{bmatrix} = \begin{bmatrix}\hat{X}_2 + (\alpha_1/\varepsilon)(Y_1 - X_1)\\ \hat{\delta}_x + f\cos\theta + (\alpha_2/\varepsilon^2)(Y_1 - X_1)\\ (\alpha_3/\varepsilon^3)(Y_1 - X_1)\end{bmatrix}\]

— and analogously for $y$ (with $f\sin\theta$ as the input) and $\theta$ (with $M$). Only the position-level outputs are assumed measurable; velocities and the disturbance state are estimated.

Simulation Setup

Parameter	Value
Reference	$[x_d, y_d] = 1.5\,[\cos(0.5t),\, \sin(0.5t)]$ — a 1.5 m circle, 60 s period
Injected disturbance	$[\delta_x, \delta_y, \delta_\theta] = [0.4,\,-0.3,\,0.25]$ (constant, unknown to the observer)
Mass / inertia	0.148 kg / 0.004 kg·m²
Translation PD	$K_p = 1$, $K_d = 1.5$
Yaw PD	$K_{p,\theta} = 12$, $K_{d,\theta} = 4$
EHGO gains	$L = [3,\,3,\,1]$, $\varepsilon = 0.1$
Saturation	translation 0.25 m/s², yaw 5 rad/s²
Integration	Forward Euler, $dt = 1$ ms, 5 reference periods

Implementation is a single MATLAB script that simulates the planar plant, runs three independent ehgo_step Euler updates per tick, and feeds estimates back into the controller. A 6-DOF Simulink + Unreal Engine 5.3 visualizer is used for the full-3D version of the same setup.

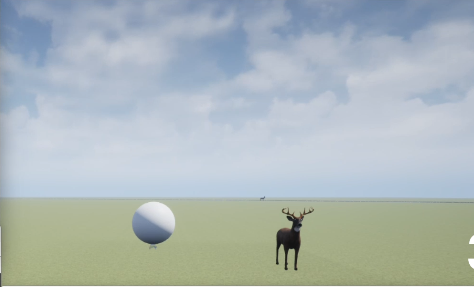

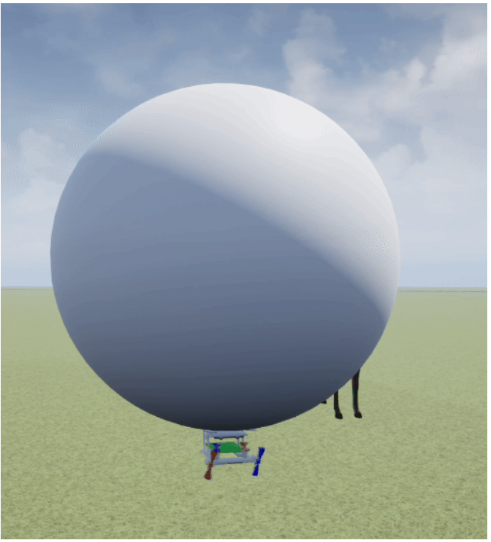

Simulink + Unreal Engine 5.3 visualizer used for the full 6-DOF version of the simulation environment.

Result

With the same controller and the same constant disturbance, EHGO-on converges cleanly onto the 1.5 m circle, while EHGO-off drifts off the reference and never closes the loop on the steady-state offset.

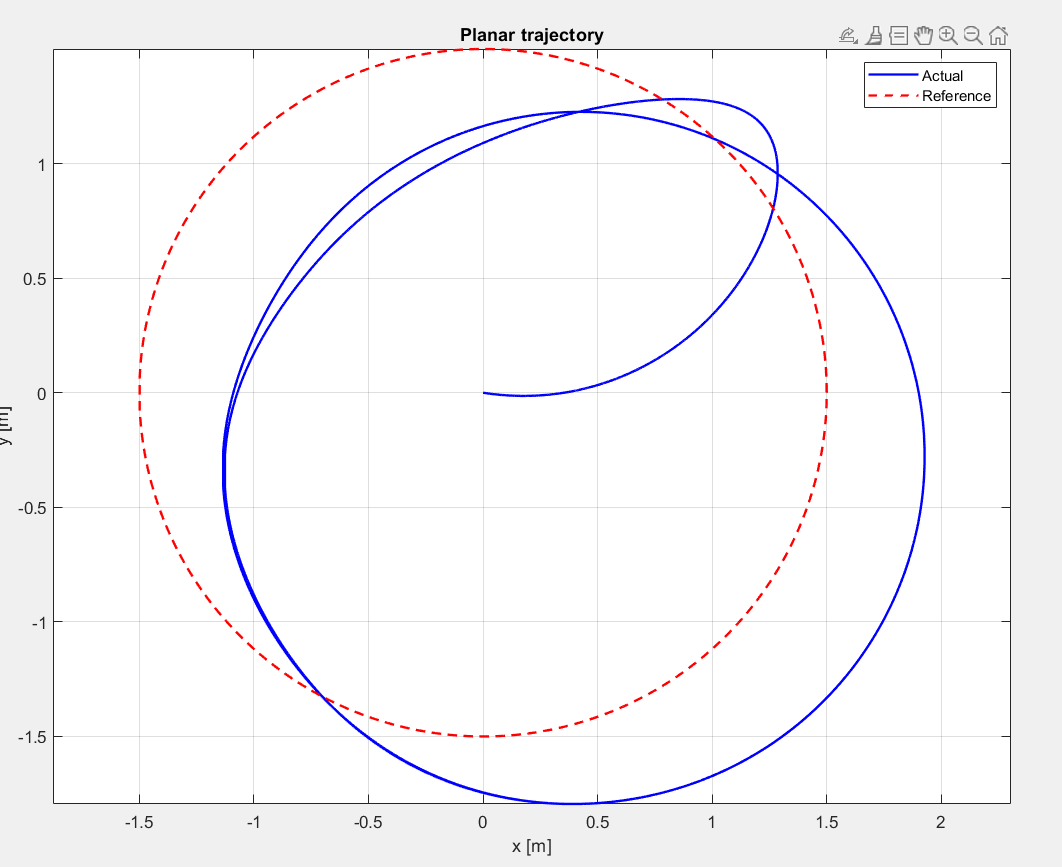

Trajectory tracking — no disturbance rejection

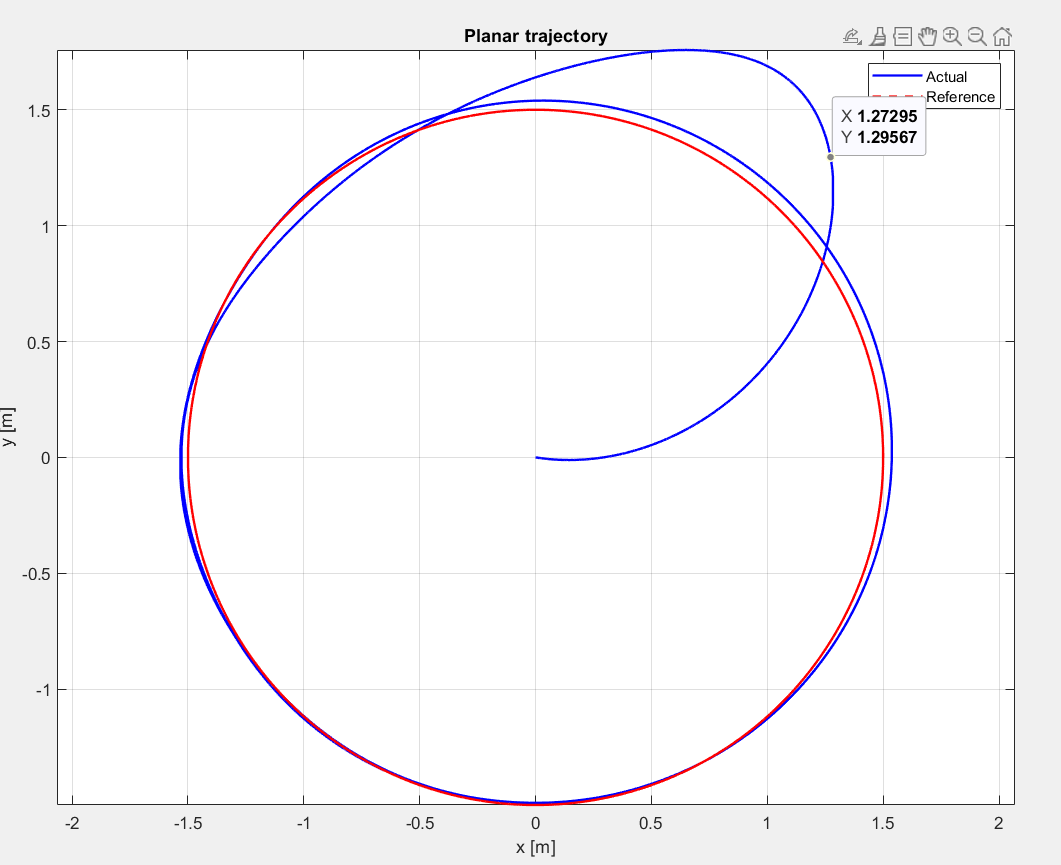

Trajectory tracking — with EHGO disturbance rejection

Left: planar trajectory under the constant $$[0.4,\,-0.3,\,0.25]$$ disturbance with EHGO disabled — trajectory drifts off the reference circle. Right: same disturbance, EHGO enabled — trajectory locks onto the 1.5 m reference.

The estimated disturbances $\hat{\delta}_x, \hat{\delta}_y, \hat{\delta}_\theta$ converge to the injected values within a small fraction of one orbital period, validating both the observer design and the choice of $\varepsilon$.

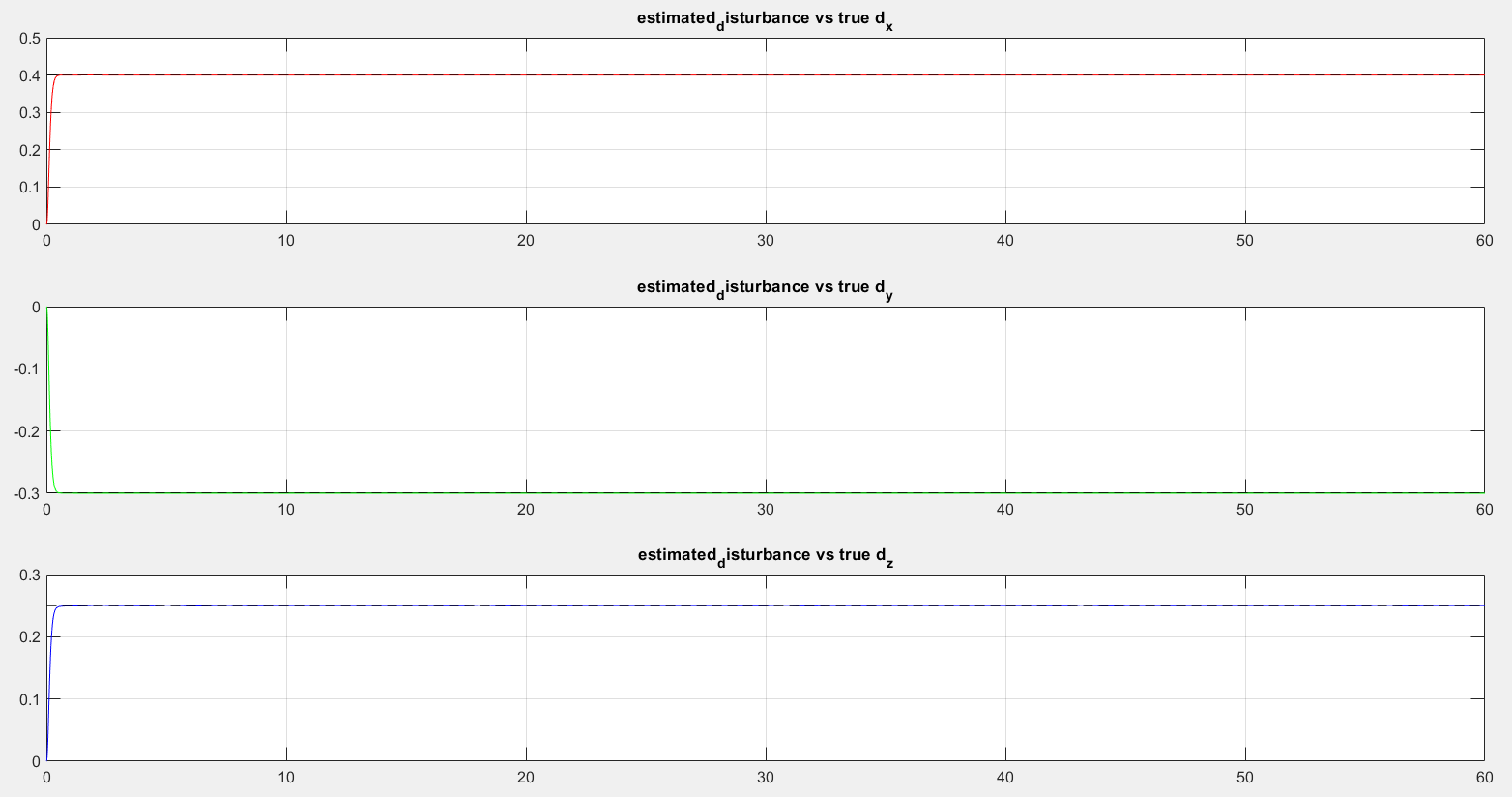

Estimated disturbances vs. injected truth

EHGO disturbance estimates (colored) tracking the true injected disturbance (dashed) on each axis: $$d_x = 0.4$$, $$d_y = -0.3$$, $$d_\theta = 0.25$$.

References

Boss & Srivastava, J. Dyn. Syst. Meas. Control 147(1), 2025 — high-gain observer for multirotor trajectory estimation/tracking (the structural template adapted here).
Khalil, IEEE Control Systems Magazine 37(3), 2017 — high-gain observers in feedback control, with the chain-of-integrators recipe used for ehgo_step.
Cheng et al., IEEE RA-L, 2023 — RGBlimp design/modeling/aerodynamics, used as the rigid-body dynamics reference.

ROS 2 Firmware & Stack

The on-vehicle firmware (blimp-controller) talks to the host over micro-ROS, exposing the gondola as a first-class ROS 2 node. The host-side package — blimp_ros2_nodes, tested on ROS 2 Humble — provides:

joystick_control — PS4 controller integration via teleop_twist_joy, mapping joystick input to body-frame velocity commands.
flight_controller — flight-control nodes including yaw regulation.
KinematicEstimation — kinematic state estimation, dead reckoning, and low-pass filtering used as a shared dependency by the other packages.

This split keeps the high-rate, deterministic control loops on the MCU while letting estimation and high-level planning live on the host, where they can use ROS 2 visualization and tooling without compromising real-time guarantees on the vehicle.

Next-Generation Hardware Platform

The current gondola has clear ceilings: open-loop coreless brushed motors, a resource-constrained MCU, no rotor-speed feedback, no camera, and no real provision for outdoor operation. The next-gen design addresses these head-on.

What’s Changing

Compute split — A Raspberry Pi CM4 SBC for high-level autonomy (vision, planning, ROS 2 graph) alongside a Teensy 4.0 as the hard-real-time master MCU for low-level control and safety. The split lets the SBC be killed/restarted without dropping flight control.
Closed-loop propulsion — Three dedicated BLDC driver ASICs with rotor-speed feedback, replacing open-loop drive of brushed motors.
Actuator upgrade — From 3.7 V coreless brushed (60 000 RPM, 40 mA) to Happymodel EX1102 brushless on 2–3S with multiple KV options, much more thrust headroom for outdoor wind tolerance.
Sensing — IMU, GNSS, two ToF sensors, and a CSI camera. The IMU + GNSS handle global pose; ToF gives short-range obstacle awareness; the camera enables vision-based docking and downstream perception.
Comms — LoRa for long-range telemetry/command, in addition to existing Wi-Fi for high-bandwidth data.
Power — 2S LiPo (7.4 V) → 20 A fuse → INA226 power monitor (3 mΩ shunt) → MAX20008AFOC buck → 5 V rail. The SBC sits behind a TPS22963C load switch that the MCU can gate, so the SBC can be brought up or shut down independently of flight control.
Form factor / config — Board grows from 71 × 54 mm (40 cm²) to 68.5 × 74 mm (51 cm²); HW mass goes from 80 g to ≈ 155 g, which pushes the envelope to either a larger single balloon or a 2-balloon configuration. Thruster count drops from 4 to 3 (yaw, longitudinal, height) — fewer actuators but each one is much more capable.

Platform Versatility

The new compute board is designed to be more than just a blimp avionics module. With pogo-pin connectors carrying both power and data, the same board can dock onto different external sensing payloads (or different robotic platforms entirely), so the autonomy stack is reusable across experiments rather than blimp-specific.

Docking & Recharging Concepts

A blimp that flies for hours still needs to come home and recharge. Two docking concepts are on the table:

Dock-only (no tether). The ground station has an electromagnet that pulls the gondola into the vicinity and roughly orients it; a wireless charging pad on top of the station doubles as a twist-and-snap physical lock. Magnetometer + onboard camera handle the final approach, since when the dock is directly below the blimp it falls out of the camera FOV and the magnetometer takes over.
Dock + tether. Same locking pad and electromagnet, but with a powered tether between station and gondola so the platform can stay airborne indefinitely off shore power for persistent-monitoring missions.

Status & Next Steps

Migrating firmware and ROS 2 nodes onto the next-gen avionics board.
Closing the loop on the new BLDC propulsion stack with rotor-speed feedback.
Bringing up vision-based docking against the wireless-pad ground station.
Continuing controller work toward outdoor deployment, where the EHGO-style disturbance rejection actually has wind to compensate for.
